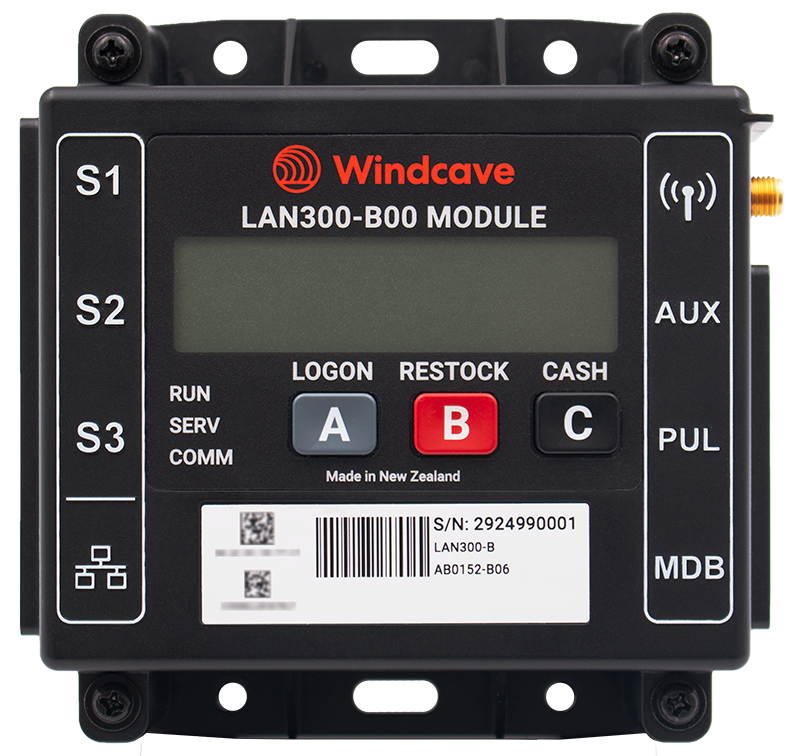

LAN300-B


area-grey

Payment Connectivity Solution

The LAN300-B can be used as a Telemetry Device or serial to Ethernet converter. It’s small, compact design will ensure your unattended payment system fits your requirements.

Cellular Connectivity

Optional LTE-M (4G or 5G*) connectivity allows the LAN300-B to communicate with the Windcave host to process payments without a wired Ethernet connection.


*Subject to operator availability.

Highly Customizable

Different mounting options (magnetic, screw-in or DIN rail), software functions, and programmable buttons the LAN300-B can be tailored to your needs.

area-grey

Specification


area-grey

Human Interface

3x Status LEDs

3x Function Keys

LCD Display 16x2


Audio

Buzzer


Connectivity

3x RS232 (Serial and Power)

Ethernet (PoE optional)

LTE-M cellular (optional)

MDB (Data and Power)

Coin Acceptor Emulation (12V and 24V systems)


Power Supply

9-45V DC (MCB & Serial)p>


Dimensions

99 x 105 x 35mm


Weight

230g (8.1 oz)


Operating Humidity

85% non condensing at 40°C/104°F


Storage Temperature

-25°C/-13°F to 80°C/176°F


Operating Temperature

-20°C/-4°F to 75°C/167°F


IP Rating / IK Rating

IP 32
